Art.-No. 519328

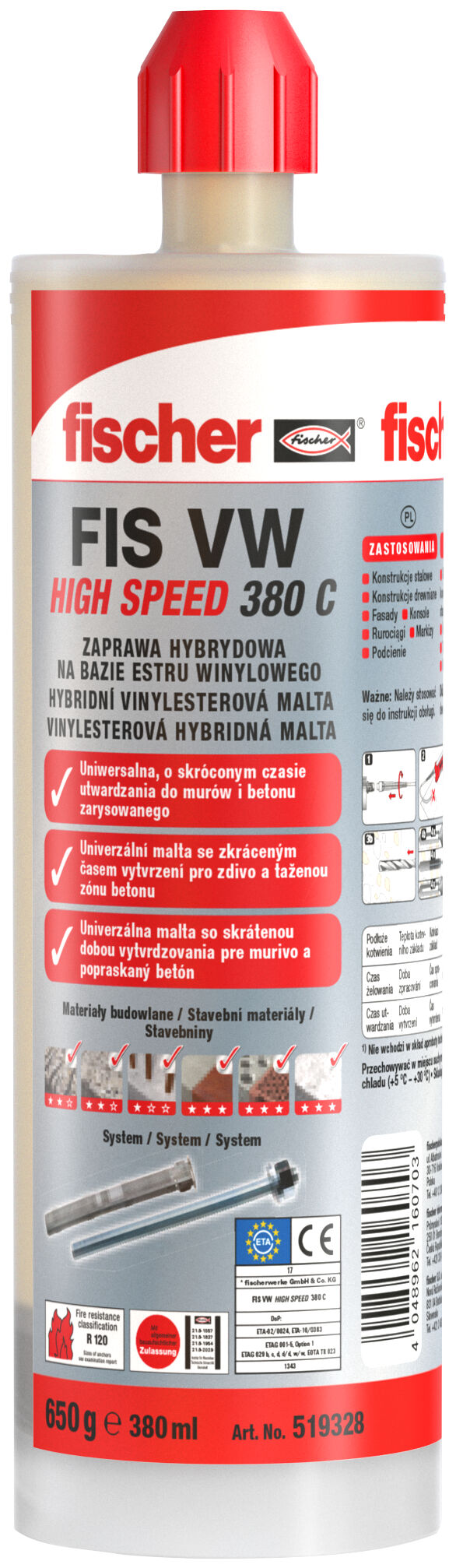

fischer Injection mortar FIS VW HIGH SPEED 380 C

Name: fischer Injection mortar FIS VW HIGH SPEED 380 C
Brand: fischer

Product variants

Download of image data

Top Features

Application with sealant gun.
First injection mortar system worldwide with approval for all relevant building materials.
Extensive range of system accessories.
Short curing time.
Processing down to -10 °C in the building material.

The versatile injection mortar for anchorings in masonry and cracked concrete

Advantages

The injection mortar FIS V has a range of system approvals, for cracked and non-cracked concrete, masonry, and rebar connections, for example. FIS V is therefore the universal injection mortar family with guaranteed safety for almost every application.
FIS VW HIGH SPEED has a significantly shorter hardening time than FIS V, which ensures swift work progress even at low temperatures.
The FIS VS LOW SPEED has an extended processing time that prevents the premature hardening of the mortar at higher temperatures. It is ideally suited to large drill hole depths.
The extensive range of accessories is perfectly tailored to the injection mortar family FIS V, increases the high flexibility of the system, and thus enables a broad range of applications.

The fischer high-performance mortar FIS V is the universal all-rounder for the highest requirements. The styrene-free vinyl ester hybrid mortar with its numerous fixing elements is approved for fixations in cracked and non-cracked concrete as well as in masonry. However, the injection mortar is also used with the approved system components for rebar connections, the fischer remedial wall tie VBS 8, the fischer weather facing wall tie FWS II, and the stand-off installation system TherMax. The variant FIS VS LOW SPEED enables an extended processing time at higher processing temperatures or a greater drill hole depth. The shorter hardening time of the variant FIS VW HIGH SPEED enables swift work progress even at low temperatures.

Applications

Steelwork constructions
Timber constructions
Guard rails
Façades
Staircases
Steel brackets
Machines
Masts
Awnings
Canopies
Gates
Consoles
Pipelines
Gratings
Satellite antennas

Building materials

Approved for anchorings in:

Concrete C20/25 to C50/60, cracked and non-cracked
Hollow blocks made from lightweight concrete
Hollow blocks made from concrete
Vertically perforated brick
Perforated sand-lime brick
Solid sand-lime brick
Aerated concrete
Solid brick

Approved for:

Rebar connections
Remedial wall tie VBS 8
Weather facing reconstruction system FWS II
Stand-off installation TherMax

You can find detailed information on building materials in the registration document.

Approvals

ETA-02/0024
ETA-08/0266
ETA-10/0383
DoP No. 0188
DoP No. 0189
DoP No. 0304
DoP No. 0229
21843_3enshort

Functionality

FIS V is a 2-component injection mortar based on a vinyl ester hybrid concept.
Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer.
The mortar is extruded bubble free from the drill hole base.
The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole.
The injection cartridges are quick and easy to use with the fischer dispensers.
Partially used cartridges can be reused by changing the static mixer.

View assembly instructions as PDF

Mounting Strip 1 Picture

1 / 9

Mounting Strip 2 Picture

1 / 9

Mounting Strip 3 Picture

1 / 7

Mounting Strip 4 Picture

1 / 5

Mounting Strip 5 Picture

1 / 7

Mounting Strip 6 Picture

1 / 6

ETA-approval
Language on label	CS, PL, SK
Scale unit	190
Contents	1 x Cartridge 380 ml 2 x Static mixer FIS MR Plus
Packaging	Cartridge
Amount	1 pcs.
GTIN (EAN-Code)	4048962160703

ETA Certification Document

pdf, ETA-02/0024

European Technical Assessment for Injection System fischer FIS V - Bonded anchor for use in concrete

Created on 13/05/2020

DOP - Declaration of Performance

pdf, DoP No. 0188

Declaration of Performance for fischer injection system FIS V (Bonded fastener for use in concrete)

Created on 27/05/2020

ETA Certification Document

pdf, ETA-08/0266

European Technical Assessment for Rebar connection with fischer injection mortar FIS V or FIS VS

Created on 12/05/2022

DOP - Declaration of Performance

pdf, DoP No. 0304

Declaration of Performance for Rebar connection with fischer injection mortar FIS V (Mortar for post-installed rebar connections)

Created on 30/05/2022

DOP - Declaration of Performance

pdf, DoP No. 0229

Declaration of Performance for fischer injection system FIS V (Mortar for postinstalled rebar connections)

Created on 29/06/2020

ETA Certification Document

pdf, ETA-10/0383

European Technical Assessment for fischer Injection system FIS V for use in masonry - Metal injection anchors for use in masonry

Created on 07/07/2020

DOP - Declaration of Performance

pdf, DoP No. 0189

Declaration of Performance for fischer injection system FIS V (Metal injection anchors for use in masonry)

Created on 21/07/2019
