Art.-No. 519548

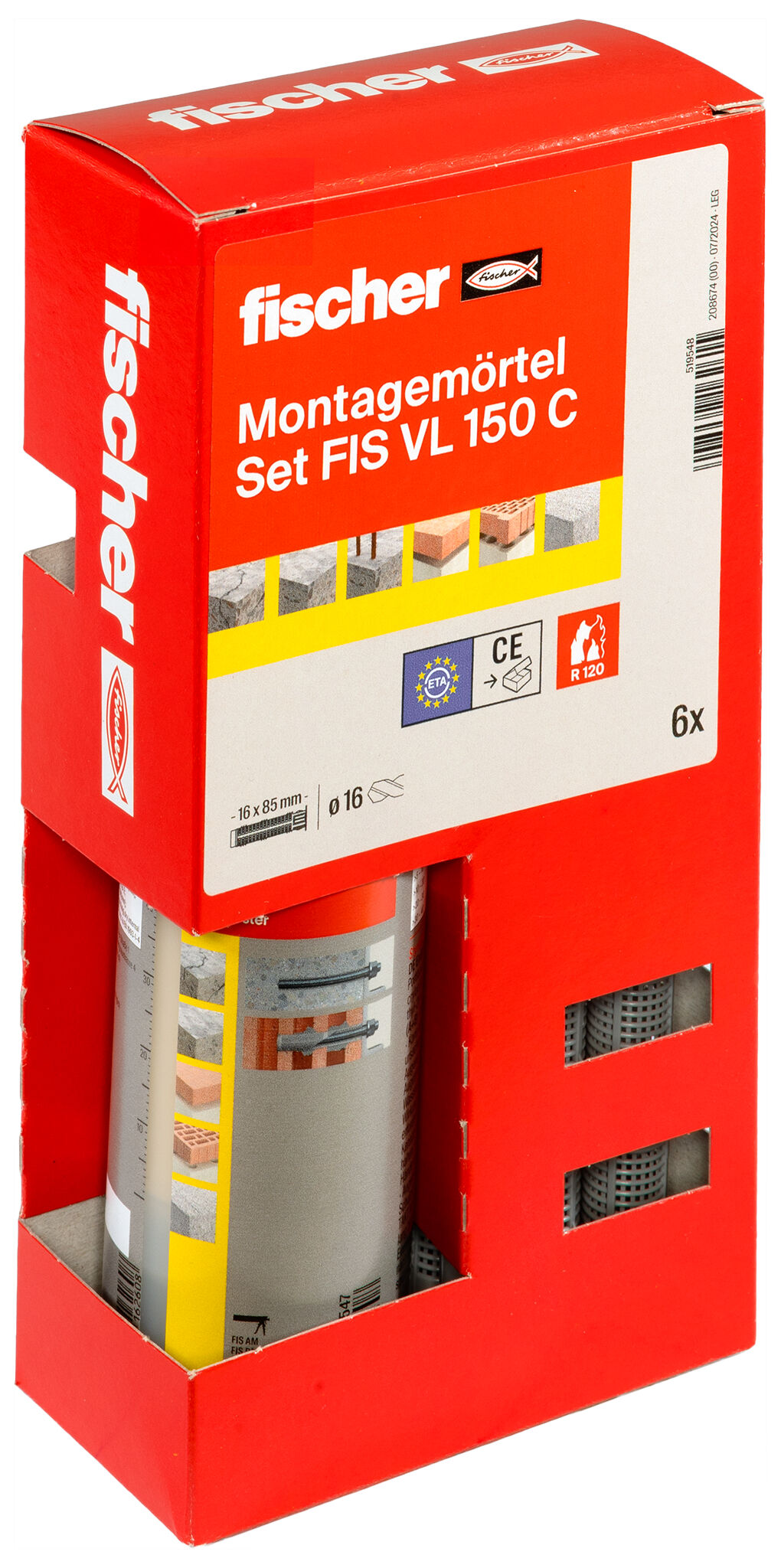

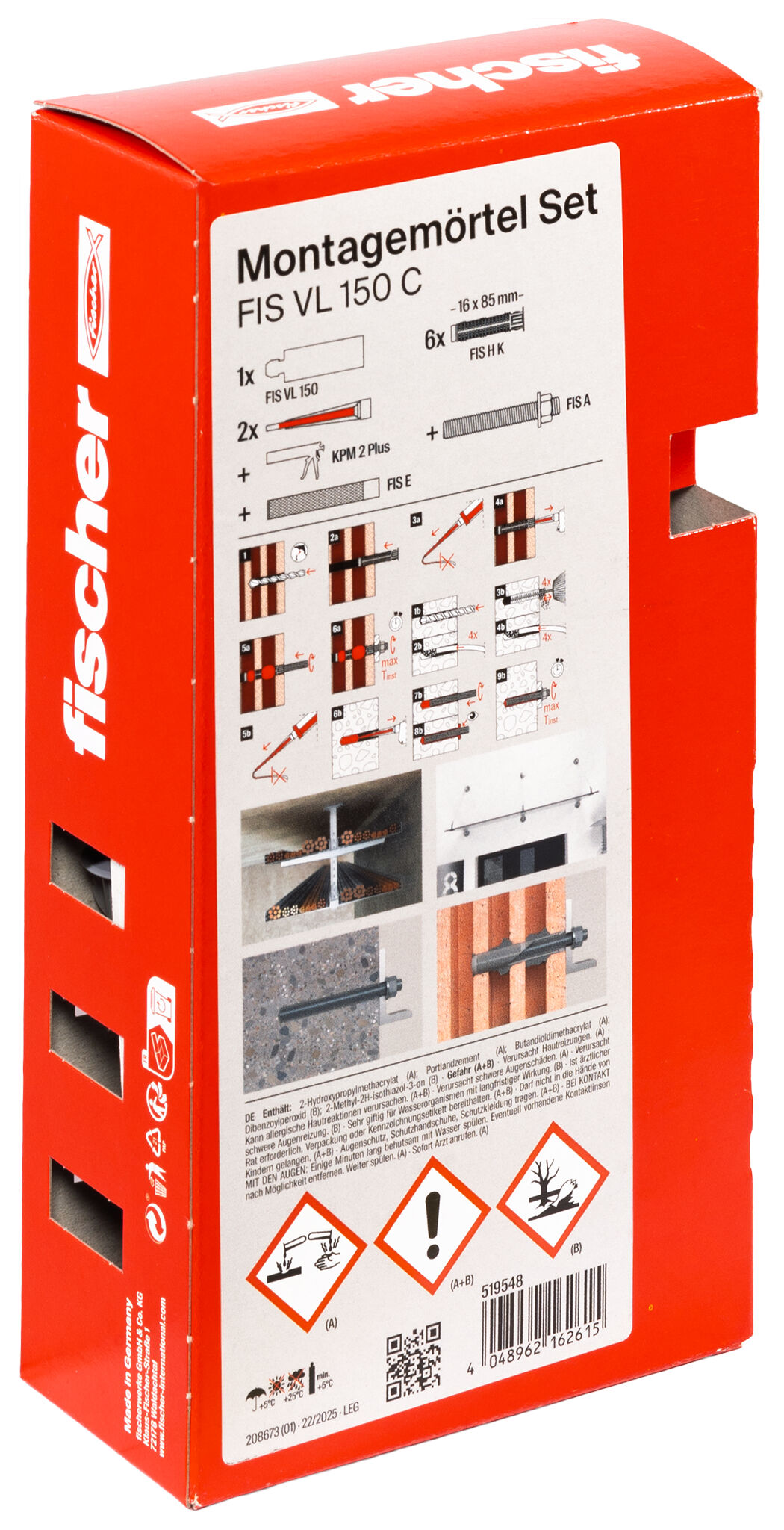

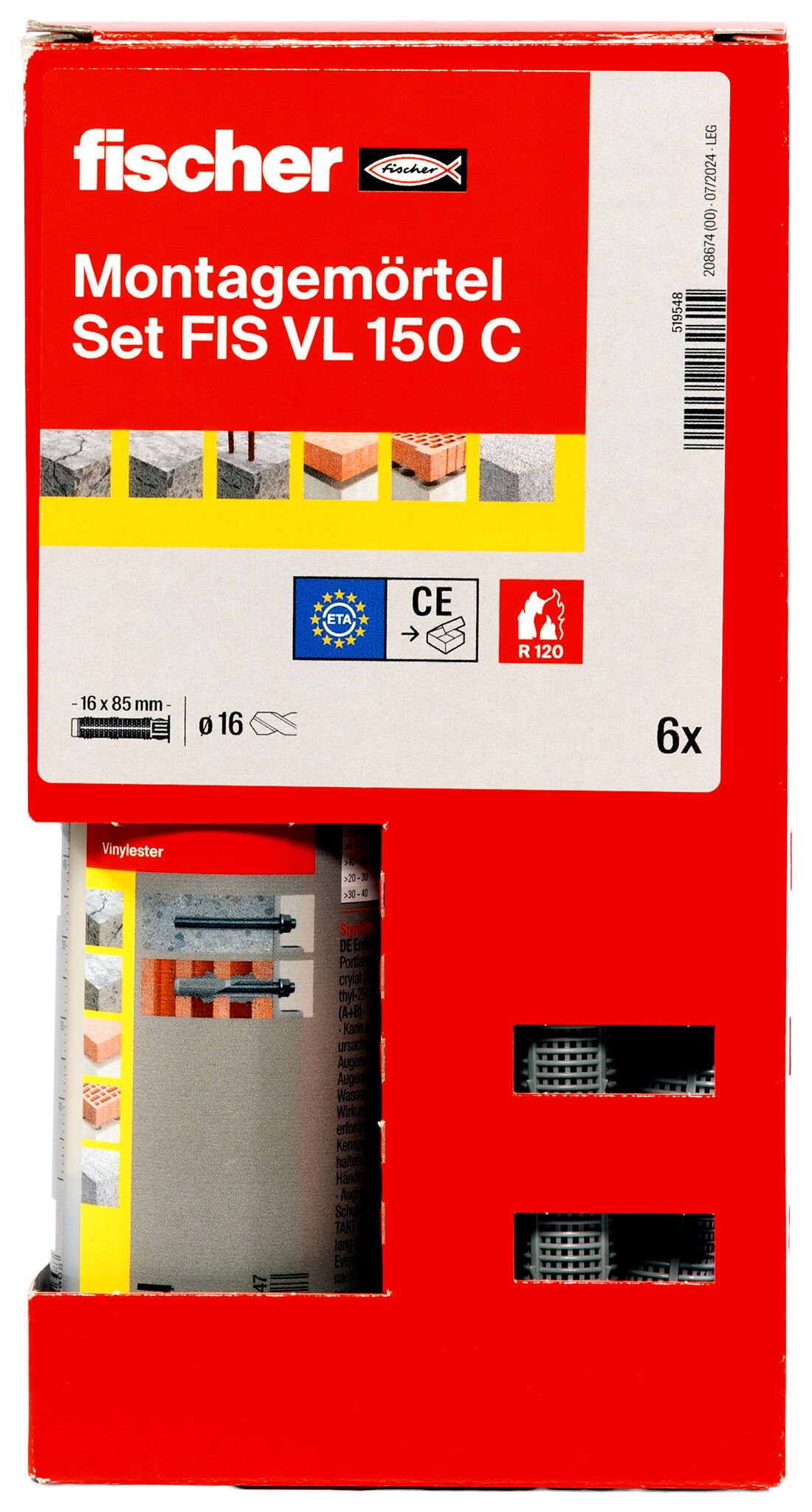

fischer Injection mortar 150 C SET

Top Features
  • High flexibility due to co-ordinated system components.
  • Approved for concrete and masonry.
  • Processing with conventional sealant application gun.
  • Set with injection anchor sleeve plastic.
  • Expansion-free fixing for small spacings and edge distances.

The advantages / Product description

Compact cartridge for standard applications in solid and perforated masonry, and cracked concrete.
Advantages
  • The FIS VL is approved for use in cracked concrete and masonry, and achieves a high load-bearing capacity in these conditions.
  • The temperature resistance of the FIS VL injection mortar of -40 °C to +120 °C allows for a solid load level even when subjected to high temperature demands, thus providing great flexibility.
The fischer installation mortar 150 C set is a 2-component injection system based on vinyl ester. The resin and hardener are only mixed and activated during application from the static mixer. The practical set contains plastic injection anchor sleeves. It is especially cost-effective to process the installation mortar with a conventional sealant application gun. Partially used cartridges can be reused with a new static mixer. The hybrid system offers a wide range of possible applications for internal and external use with approved system components such as anchor rods FIS A, anchors with internal threads, and injection anchor sleeves for fixings in concrete and masonry.
Youtube VideoYoutube VideoYoutube Video

Application and approval

Applications
  • Steelwork constructions
  • Timber constructions
  • Guard rails
  • Façades
  • Staircases
  • Steel brackets
  • Machines
  • Masts
  • Awnings
  • Canopies
  • Gates
  • Consoles
  • Pipelines
  • Gratings
  • Satellite antennas
Building materials
Approved for anchorings in:
  • Concrete C20/25 to C50/60, cracked
  • Hollow blocks made from lightweight concrete
  • Vertically perforated brick
  • Perforated sand-lime brick
  • Solid sand-lime brick
  • Solid brick
  • Rebar connections
  • Aerated concrete
Also suitable for:
  • Concrete C12/15
  • Hollow blocks made from concrete
You can find detailed information on building materials in the registration document.
Approvals
  • ETA-15/0263
  • ETA-15/0539
  • ETA-10/0352
  • DoP No. 0195
  • DoP No. 0342
  • GS 3.2/18-159-1-r1
  • 21909_2 – abridged version

Assembly instruction

Functionality
  • The FIS VL is a 2-component injection mortar based on vinyl ester.
  • Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer.
  • The mortar is extruded bubble free from the drill hole base.
  • The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole.
  • The injection mortar FIS VL 150 C can be applied without a special tool using a standard dispenser.
  • Partially used cartridges can be reused by changing the static mixer.
Mounting Strip 1 Picture
1 / 9
Mounting Strip 2 Picture
1 / 9
Mounting Strip 3 Picture
1 / 7
Mounting Strip 4 Picture
1 / 5
Mounting Strip 5 Picture
1 / 7
Mounting Strip 6 Picture
1 / 7

Technical data

ETA-approval
Language on label DE
Scale unit 70

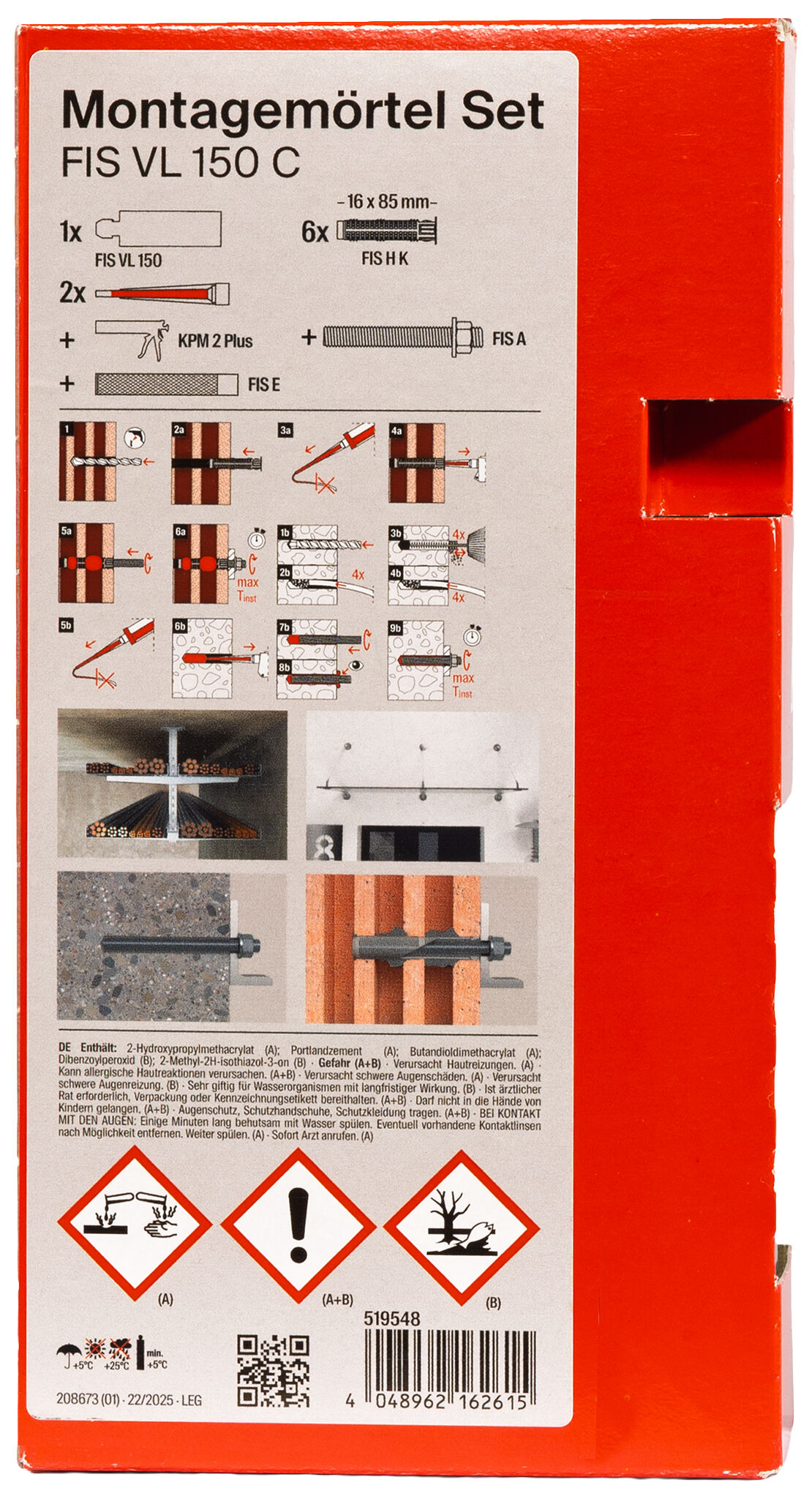

Contents 1 x Cartridge 150 ml, 2 x static mixer FIS MR Plus, 6 x FIS H 16 x 85 K
Packaging Cartridge
Amount 1 pcs.
GTIN (EAN-Code) 4048962162615

Documents for download

  • ETAs and DoPs
  • Approvals and Certificates
  • Safety data sheets
  • Technical documents
European Technical Assessment fischer Injection system FIS VL for use in masonry - Injection system for use in masonry
Created on 07/07/2020
Declaration of Performance for fischer injection mortar FIS VL (Metal injection anchor for use in masonry)
Created on 04/08/2020
European Technical Assessment for Rebar connection with fischer FIS VL - Post-installed rebar connection with injection mortar fischer FIS VL
Created on 27/08/2015
European Technical Assessment for Injection System fischer FIS VL for use in concrete
Created on 26/07/2023
Declaration of Performance for fischer injection mortar FIS VL (Bonded fastener for use in concrete)
Created on 15/08/2023
