Designed to protect the building void between the inner and outer construction elements.

Cavity FireStop Clad FCFcl Plus

FCFcl Cavity Clad Plus comprises of a one piece closed dimension stone wool core. The product is encased with an aluminum foil face which provides excellent resistance to smoke. The FCFcl Cavity Clad Plus provides a resilient lateral compression when it is required to ensure a tight fit for curtain wall applications. It can be used for vertical and horizontal linear joint, rainscreen and brickwork façade applications without compression.

Variantet e produktit

Download of image data

Variantet e produktit

Approvals / Test reports

1 Product variant (s)

To suit cavity void width

Colour

Accoustic performance

Thermal conductivity

Density

Thickness

Legend = Permission Available— = Permission not Available

Viewed 1 of 1 variant (s)

Advantages

Tested to cyclic movement conditions.
Easy installation up to 150 mm joint because brackets are not required.
FCFcl Plus is easy to compress.
No compression needed for certain applications.
Tested on both rigid and flexible structures.
Can be effortlessly fixed with DHM insualtion fixings.
Accoustic isulation without brackets.
Can be used at concrete slab edges where masonry support brackets are fixed.

Applications

Floor and wall joints.
Curtain wall perimeter joints.

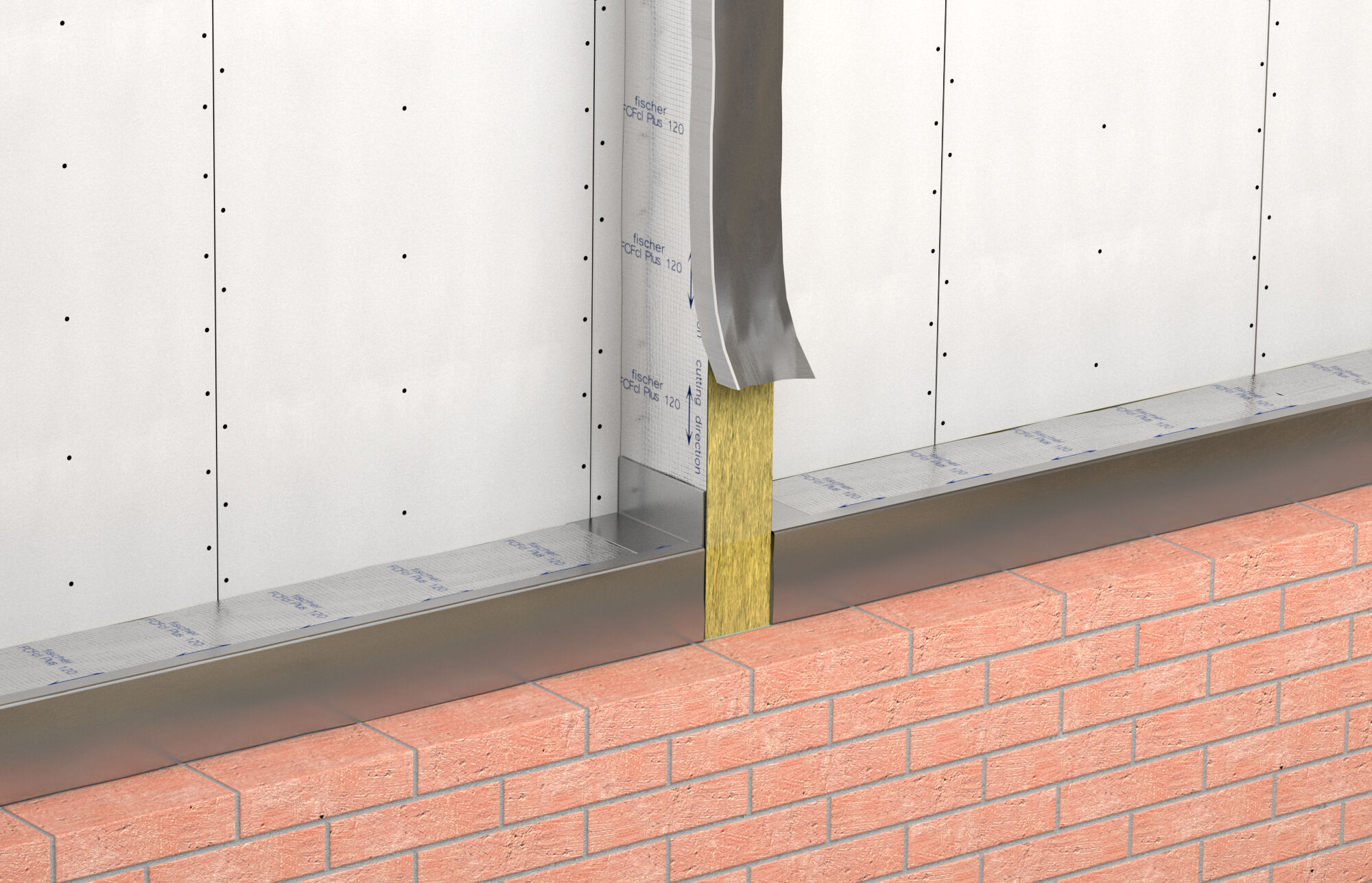

Horizontal and vertical cavity barrier applications for rainscreen and brickwork facades

Building materials

Concrete slabs
Curtain wall assemblies
Aerated concrete
Blockwork masonry
Flexible wall assemblies

Detajet (materialet e ndërtimit, ngarkesat, etj.) të çdo miratimi të disponueshëm zbatohen. Dokumentet e mëtejshme mund të gjenden në Qendra e shkarkimit.

Miratimet

ETA-23/0167

Functionality

The FCFcl Plus 120 provides a resilient lateral compression which is required to ensure a tight fit.
FCFcl Plus is a stone wool product to close joints in building constructions.

Mounting Strip 1 Picture

1 / 4

1
2
3
4

Mounting Strip 2 Picture

1 / 4

1
2
3
4

ETA-approval
To suit cavity void width	1200 x 1000 x 120 mm
Colour	inside yellow, outside silver
Accoustic performance	27
Thermal conductivity	0,35 W/mK
Density	70
Thickness ( S )	120 mm
Fire resistance	Up to E 240 and EI 180
Bracket	Required cavity ≥ 150 mm (2 per meter)
Packaging	Pallet
Amount	1 pcs.
GTIN (EAN-Code)	4048962508901
