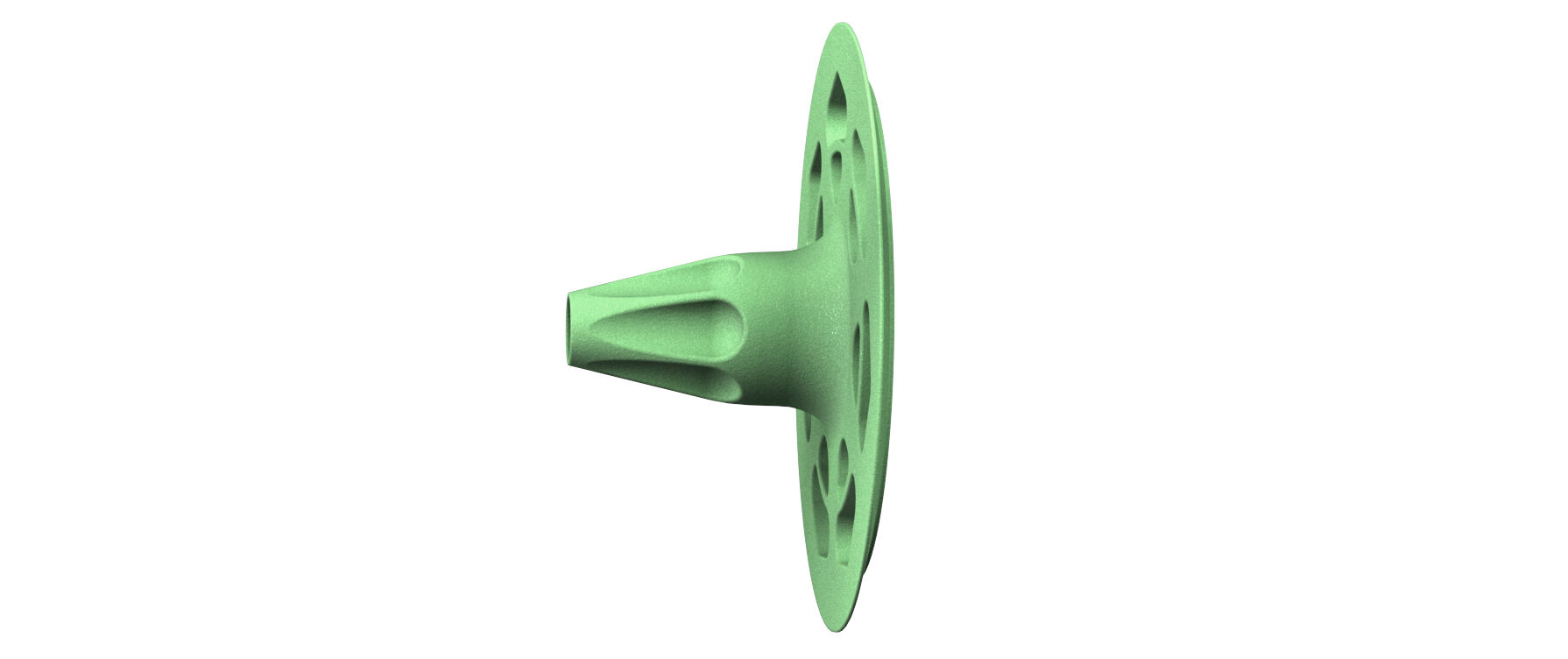

fischer TermoFix H 10

Name: fischer TermoFix H 10
Brand: fischer

Varianti del prodotto

Download of image data

Top Features

Optimised plaster adhesion due to open plate geometry.
Can be flexibly combined with different screw lengths.
Closing cap included in the standard delivery.

The disc element for use with standard screws

Advantages

The polystyrene plugs are included with the disc element TermoFix H 10.
In case of disc elements TermoFix H 50, 90 and 150 the disc is sealed using the sealing cap moulded on.
An air column is produced between the screw head and this seal. This reduces thermal-transmission losses.
Extremely economical thanks to different shank lengths. This allows the screw length to be reduced if necessary.
Can be combined with the insulating discs DT 90, DT 110 and DT 140.

The fischer TermoFix H plate elements enable the flexible fixing of all common insulation boards to wood and board materials with standard screws. Thanks to the possibility of combining the different shaft lengths with different screw lengths, any insulation thickness can be fastened securely.

Shaft length ( L )	29 mm
Disc ø	60 mm
Sealing	PS plug (included) dN·m
Colour	green
Amount	200 pcs
GTIN (EAN-Code)	4048962131833
