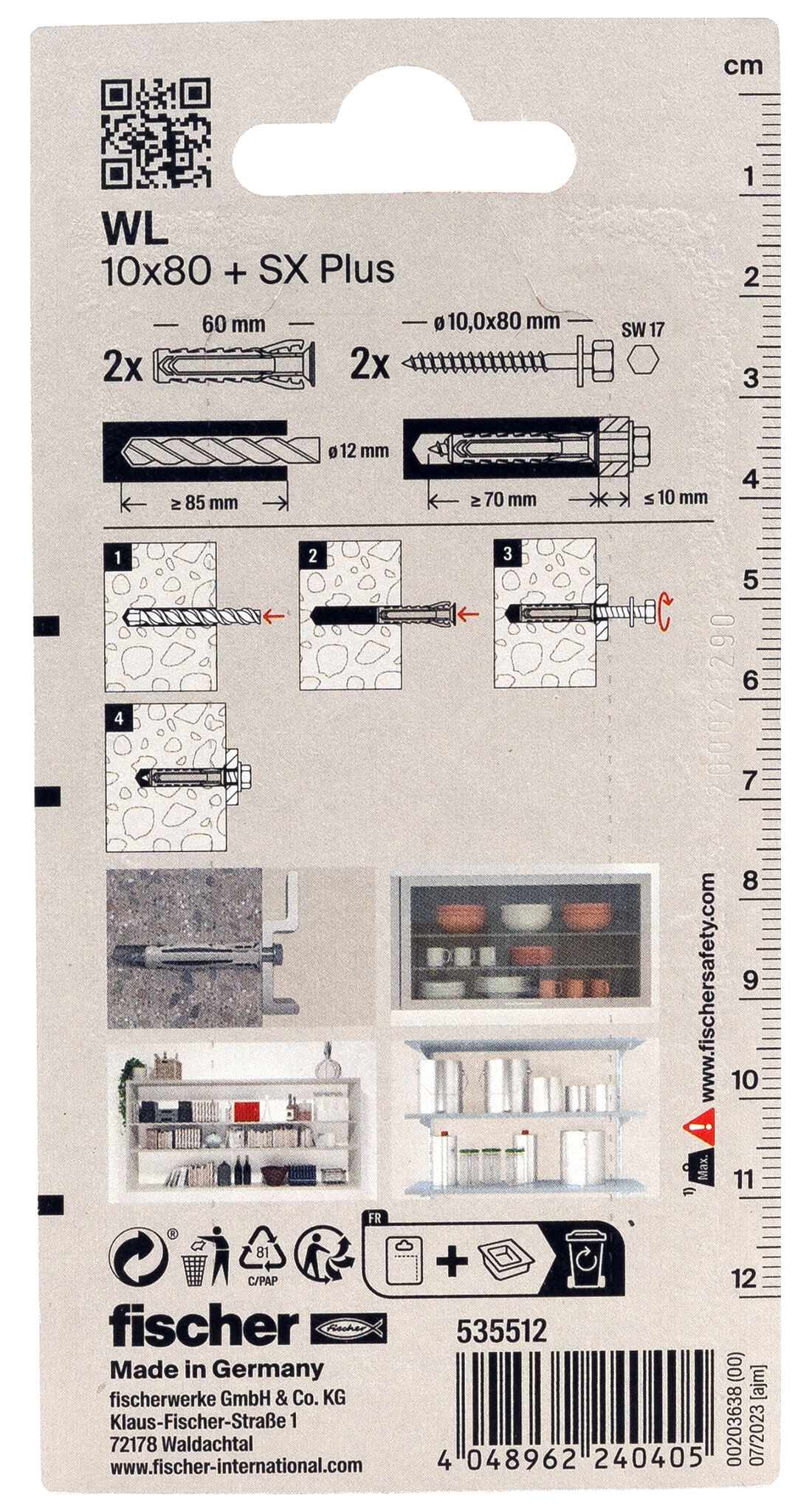

fischer WC and sanitary fixing WL 10 x 80 + SX Plus K SB-card

Top Features

The anti-rotation lock prevents rotation in the drill hole. This guarantees a high degree of safety during installation.
Simple insertion due to the ease of pushing in the plug.
The rimless plug is suitable for pre-positioned and push-through installation.

Complete fixing set for sanitary consoles.

Advantages

Complete fixing sets allow for quick and easy installation.
The rimless plug sleeve allows for the plug to be set as deep as required below the plaster to the bearing substrate to achieve the maximum load-bearing capacity.
The slimline plug geometry makes it easy to push the plug into the drill hole. For a fast and simple installation.

The fischer fixing set WL contains all elements for the safe and fast fixing of sanitary system cantilevers to the wall: Two plugs made from high-quality nylon, two zinc-plated wood screws with hexagonal head and two zinc-plated washers. The rimless plug allows for the plug to be set as deep as required below the plaster to the bearing substrate to achieve the maximum load-bearing capacity.

Applications

Gas heaters
Consoles
Air conditioning systems
Mounting rails

Building materials

Concrete
Hollow blocks made from lightweight concrete
Solid sand-lime brick
Natural stone
Natural stone with dense structure
Aerated concrete
Solid panel made from gypsum
Solid brick made from lightweight concrete
Solid brick

Functionality

The expansion plug SX Plus is suitable for pre-positioned and push-through installation.
Maximum load-bearing capacity is only achieved when the minimum screw-in depth is reached.
Tiles and plaster are not classed as load-bearing base materials.

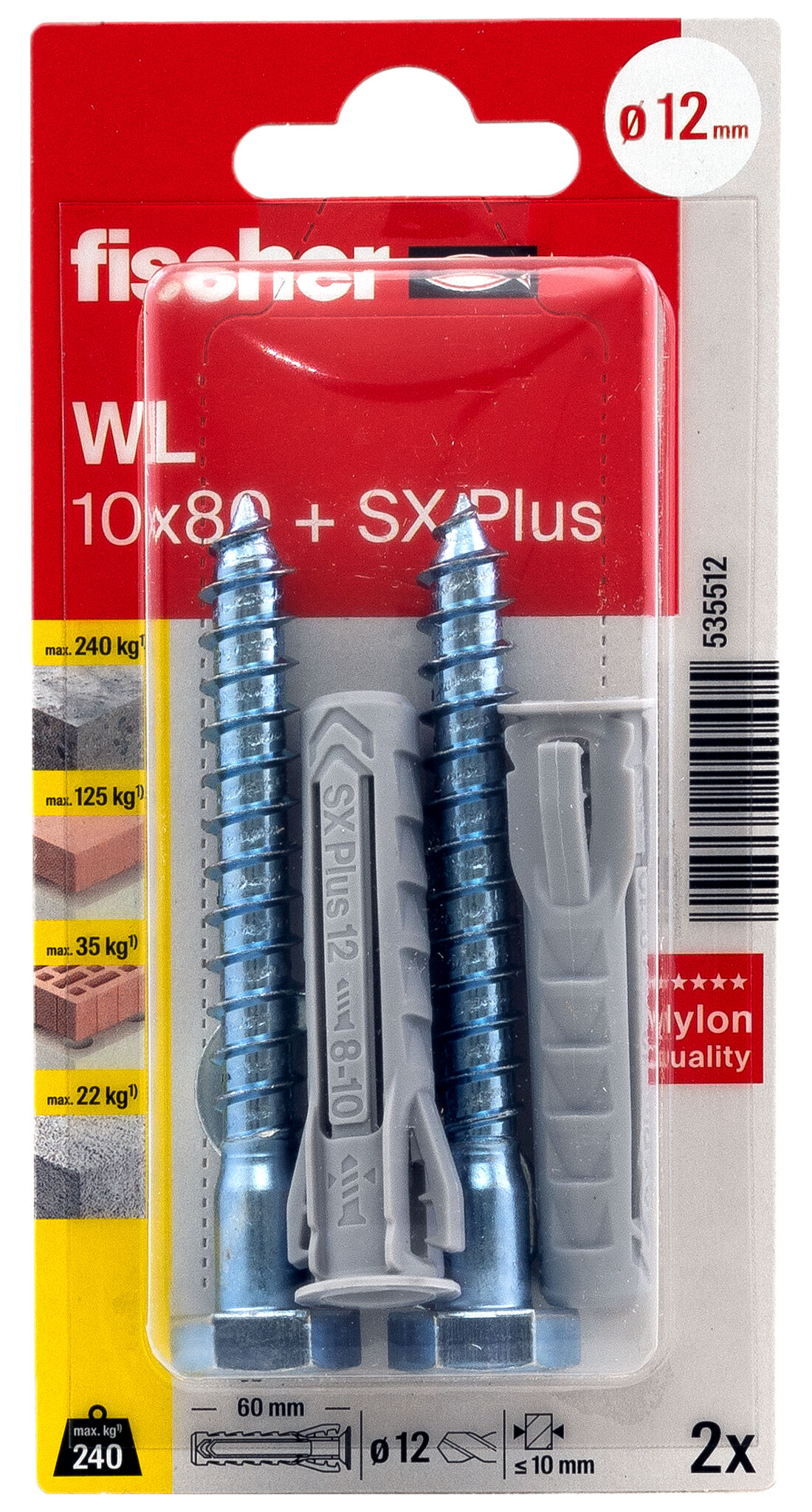

Contents	2 x Expansion plug SX Plus 12 x 60 2 x Wood screw 10.0 x 80 DIN 571 2 x Washer
Packaging	Blister card
Amount	2 pcs.
GTIN (EAN-Code)	4048962240405
