Art.-No. 562784

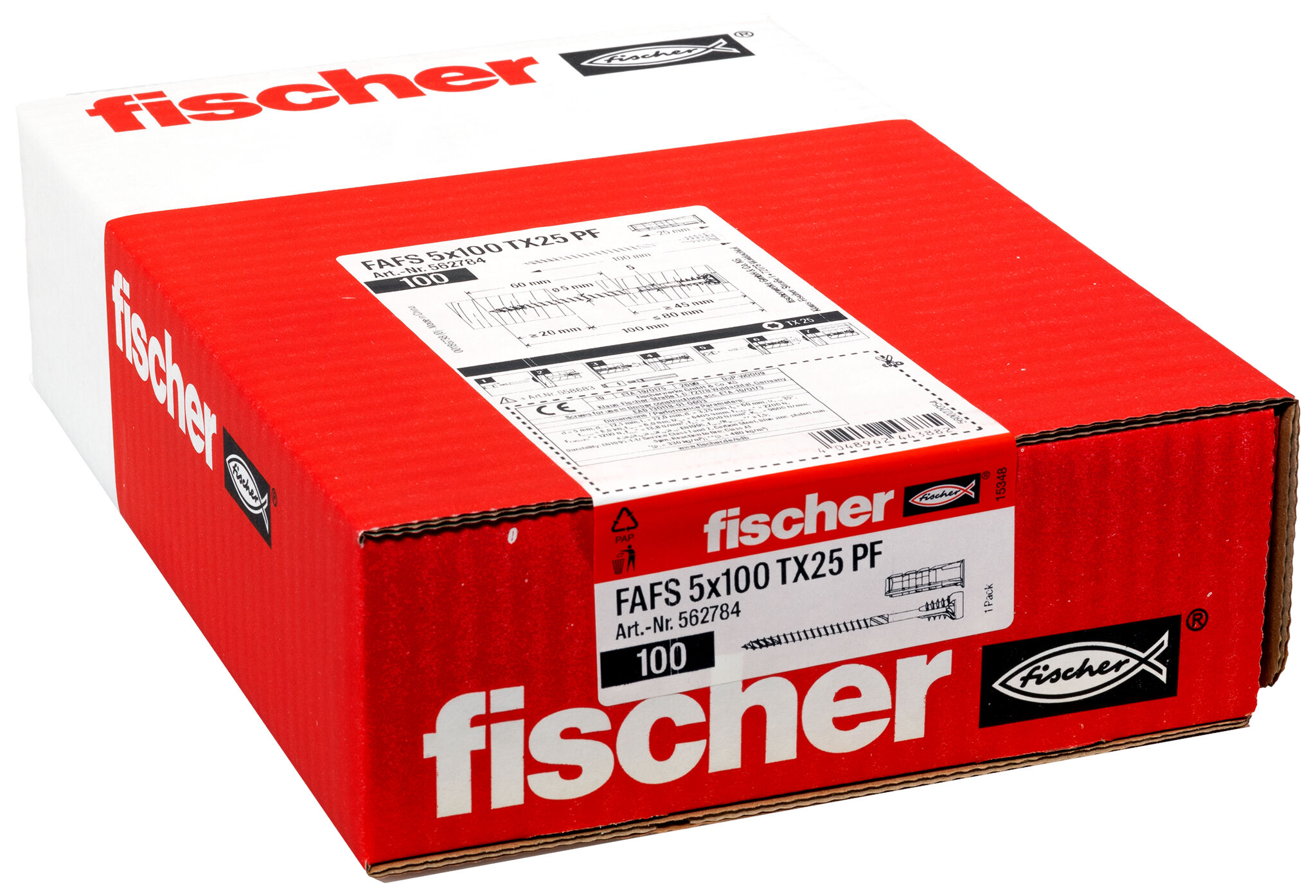

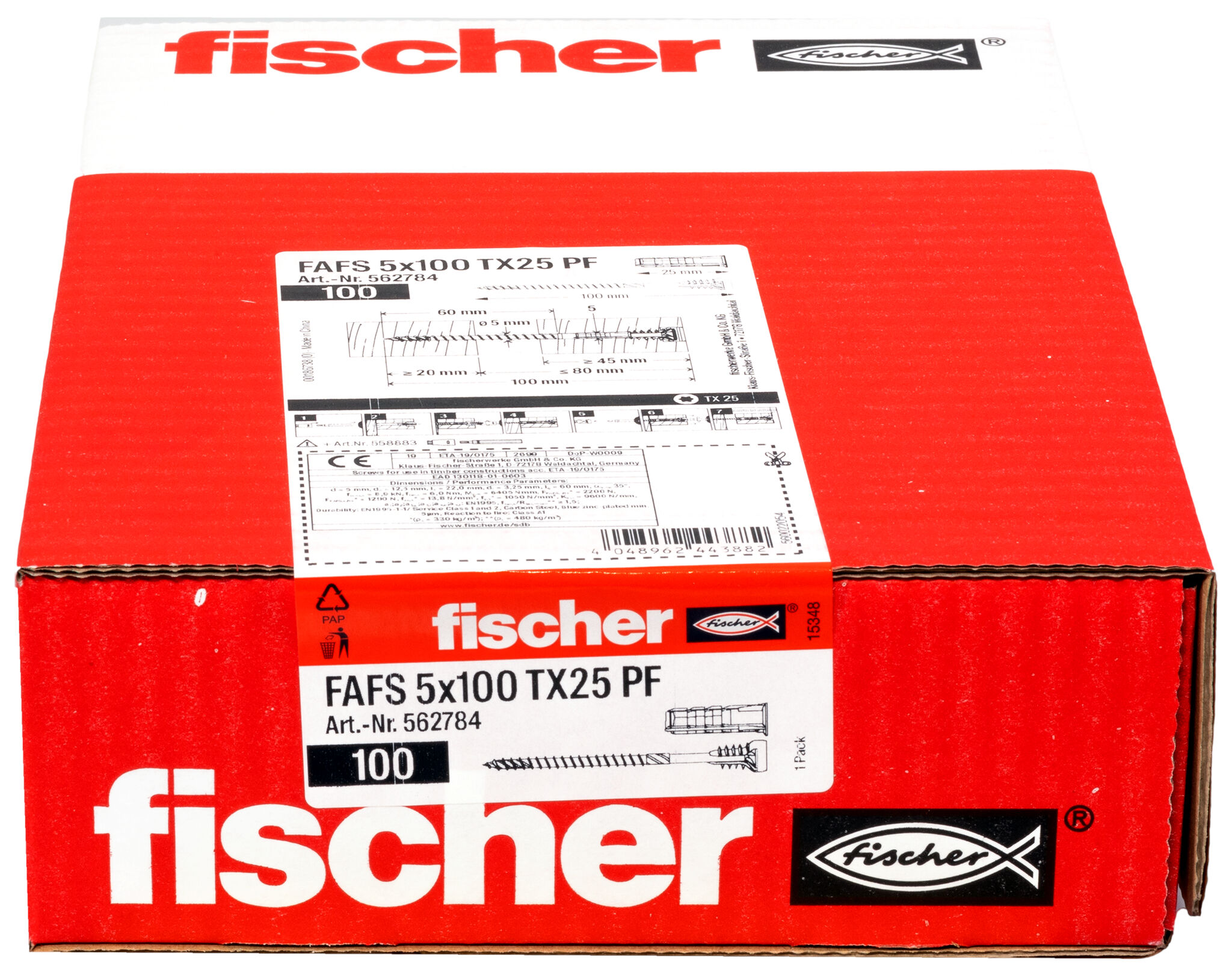

fischer adjustable screw FAFS 5 x 100 TX25 PF

Name: fischer adjustable screw FAFS 5 x 100 TX25 PF
Brand: fischer

Variantes de producto

Download of image data

Top Features

Flush installation: The countersunk clip of the screw does not rotate during adjustment, and remains fixed in the attachment part.
Stepless and precise adjustment of the attachment part, for fast and convenient alignment.
PowerFast II used for quickly biting and screwing into material.
Thread on clip allows for disassembly.
Plastic plug for firm fit in the pre-drilled frame.

The removable frame screw for precise adjustment of pre-drilled frames

Advantages

The countersunk clip of the screw does not rotate during adjustment. The screw head maintains its position in the attachment part. Flush installation is ensured, without protruding screw heads.
The special operating principle allows for stepless adjustment. The attachment part can be aligned with a high level of precision.
The thread on the clip enables an unscrewing from the attachment part, facilitating disassembly.
The PowerFast II chipboard screw used ensures the screw bites quickly into the material and screws in fast.
The plastic plug ensures the screw sits firmly in the pre-drilled frame.

fischer FAFS PF adjusting screws are problem-solvers for steplessly adjustable assembly of pre-drilled wooden frames. The specialised combination of bit and setting tool turns the screw through the attachment part, ensuring it is screwed in flush with the frame. The countersunk clip of the screw does not rotate during adjustment, ensuring the head retains its position in the frame. The plastic plug ensures the adjusting screw sits firmly in the pre-drilled frame. The distance between the frame and the substrate can be infinitely and precisely adjusted thanks to the opposed rotational direction.

Applications

Window frames
Door frames

Building materials

Wood and wooden materials or wooden panels

Puede encontrar información detallada sobre los materiales de construcción en el documento de registro.

Aprobaciones

ETA-19/0175
DoP No. W0020

Functionality

FAFS is suitable for push-through installation.
With the separately available setting tool attached to the bit, the adjusting screw can be screwed into the attachment flush with the surface or slightly countersunk.
The bit can be used to steplessly adjust the component distance, without the setting tool and by changing the direction of rotation. The clip maintains its position in the attachment part during adjustment.
For application according approval, the specifications of ETA-19/0175 must be observed.
The screw can be used in masonry with the fischer DuoPower 6x50 or UX 6x50 and after pre-drilling a 6 mm diameter hole.
Disassembly is possible, thanks to the thread on the clip of the adjusting screw.
With the bit and the setting tool attached, the adjusting screw can be dismantled by turning it anti-clock-wise.

Mounting Strip 1 Picture

1 / 4

Mounting Strip 2 Picture

1 / 3

Effect. anchorage depth ( h_ef )	20 mm
Max. distance ( a )	80 mm
Screw dimension ( d_s x l_s )	5.0 x 100 mm
Thread length ( l_g )	60 mm
Drive	TX25
Min. timber thickness ( d_a )	45 mm
Drill diameter ( d₀ )	5 mm
Amount	100 pcs.
GTIN (EAN-Code)	4048962443882
